1 6

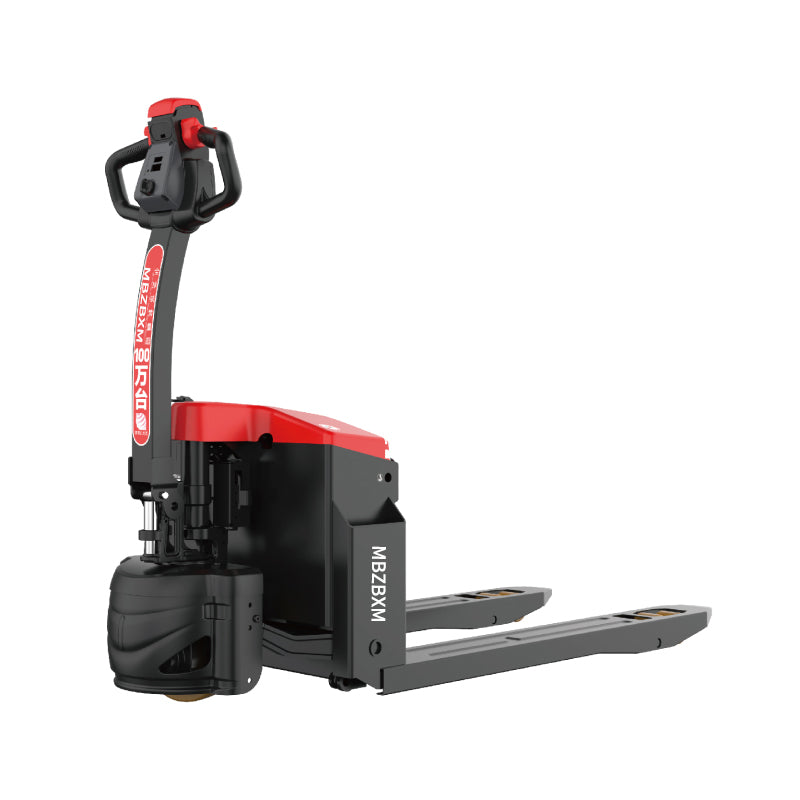

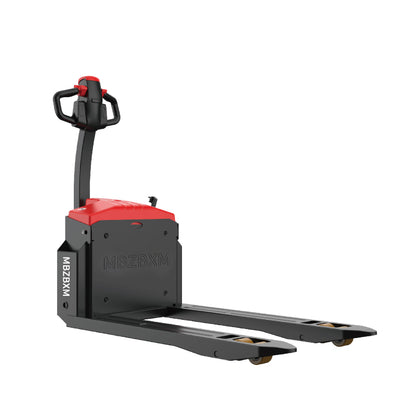

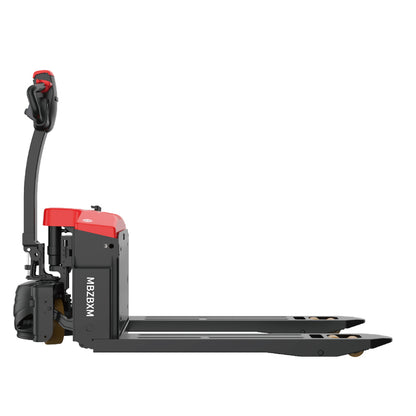

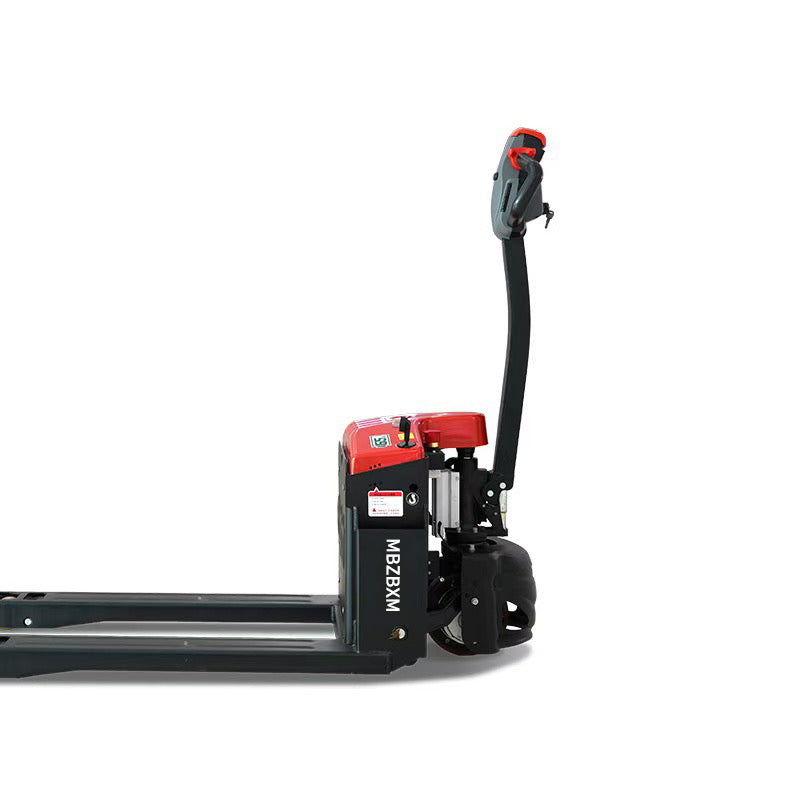

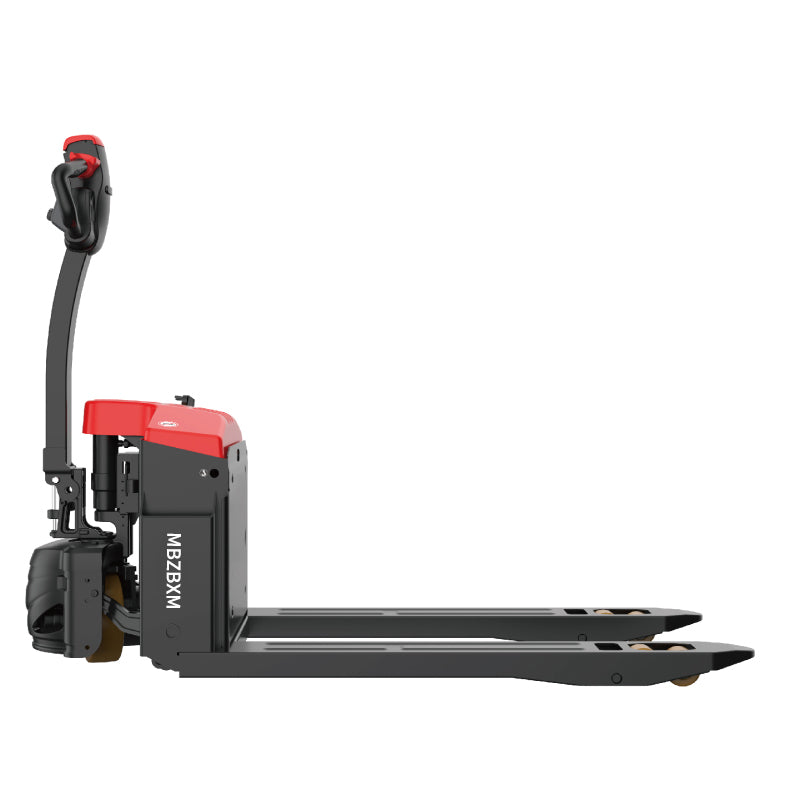

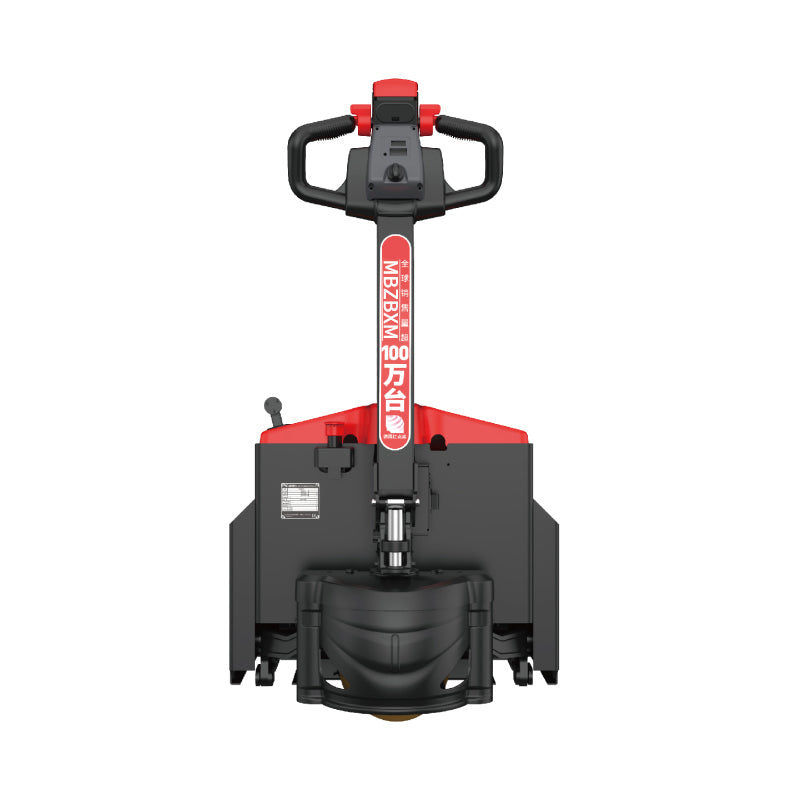

EPT20-15ET2

EPT20-15ET2
$1,999.99 USD
$1,999.99 USD
Sale Sold out

Characteristics

1.1 Model EP70-20-15E11
1.2 Driving Mode Electric
1.3 Walking Mode Wheeled
1.4 Steering Mode -
1.5 Rated Load 1500 kg
1.6 Load Centre 600 mm
1.7 Load Length 946 x mm
1.8 Wheelbase 1249 y mm
1.9 Tread -

Weight

2.1 Self-weight 154 kg
2.2 Weight with Load/Without Load 583/1107 kg
2.3 Weight with Load, Empty Load 1273 kg

Wheels/Tyres

3.1 Drive Wheel, Steering Wheel/Load Wheel Front Wheel
3.2 Tyre Model (Inflated) 620×163 mm
3.3 Tyre Model (Solid) 950×67 mm
3.4 Balance Size 97×40 mm
3.5 Drive Wheel, Balance Wheel/Load Wheel (Hub) 1×1.4 mm
3.6 Tyre Pressure -
3.7 Tyre Hardness 4100±30 mm

Dimensions

4.4 Wheelbase 105 mm
4.5 Minimum Turning Radius of Handle 700/1250 mm
4.6 Lower Fork Height 81 mm
4.9 Load Centre (Rated Load) 1618 mm
4.10 Length from Vertical Face of Cylinder 668 mm
4.20 Fork Width 60×2 mm
4.22 Fork Length 600/1080 mm
4.26 Overall Size 1600/1150 mm
4.32 Service Interval 30 h
4.34.1 Forward Speed with Rated Load (1000±1200 kg) 2201 mm
4.34.2 Forward Speed with Rated Load (900±200 kg) 2114 mm
4.36 Climbing Ability 14°

Performance Parameters

5.1 Travel Speed, No Load/With Load 4/0.5 km/h
5.2 Lifting Speed, No Load/With Load 0.229/0.081 m/s
5.3 Lowering Speed, No Load/With Load 0.056/0.03 m/s
5.6 Maximum Gradeability, No Load/With Load 6/3%
5.10 Noise ≤75 dB

Electric Motor

6.1 Driving Motor Power/850-2000 r/min 0.75 kW
6.2 Hydraulic Pump Motor Power/50±15% 0.8 kW
6.4 Battery Capacity 24/72 V·Ah
6.5 Battery Weight 45 kg

Other Data

10.5 Type of Charger Lead - acid
10.6 Charging Time 8 h
10.7 Material of Fork Steel
When the parameters in this manual are inconsistent with the actual parameters of the product, the actual parameters of the product shall prevail. The parameters, pictures, technical parameters or weights in this manual are for reference only. Except for the changes notified in advance under special circumstances, the company reserves the right to change the parameters of this manual without prior notice.
